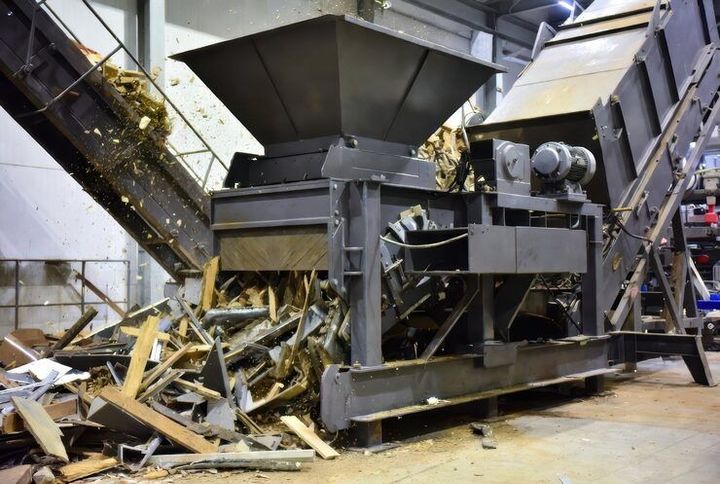

Crushing Machine Information: Types of Crushers, Operating Principles, Applications and Safety Guidelines

Context

Crushing technology has developed from relatively simple mechanical arrangements into systems that can combine crushers, feeders, screens, conveyors, sensors, and control equipment. The basic purpose remains the same: apply mechanical force to a material until it breaks into smaller fragments.

Different crushing machines use different methods of applying force. Jaw crushers compress material between two surfaces, cone crushers use compression between a rotating mantle and a concave surface, impact crushers use rapid impact forces, and roll crushers reduce material between rotating rolls.

The selection of a crushing machine depends on the material characteristics and the required output. Factors such as feed size, material hardness, moisture, abrasiveness, desired particle size, throughput, and the arrangement of the processing line can influence the type of crusher used.

Main stages of crushing

A crushing operation may involve several stages rather than one machine. Primary crushing normally handles larger feed material, while secondary and tertiary stages can reduce the material further.

A typical process may include:

• Feeding material into the crushing system

• Primary size reduction

• Secondary or tertiary crushing

• Screening into different size ranges

• Conveying or transferring processed material

• Returning oversized particles for additional crushing

This arrangement allows the output size to be controlled more closely than relying on one crushing stage alone.

Importance

Crushing machines are used across construction materials, mining, quarrying, recycling, aggregates production, and several manufacturing processes. They help convert large or irregular pieces of material into sizes that can be handled by subsequent equipment.

The importance of crushing is not limited to particle-size reduction. A controlled crushing process can influence material flow, screening performance, storage, transportation, and the consistency of material entering later processing stages.

Common materials processed

Crushers can handle many different materials, although each machine has operating limits. Common examples include:

• Natural rock and stone

• Construction and demolition materials

• Concrete

• Asphalt

• Mineral-bearing materials

• Recycled aggregates

• Certain industrial materials

Material characteristics have a major influence on crusher selection. Hard and abrasive rock can place different demands on crushing components than softer materials. Wet or sticky feed material may also behave differently from dry, free-flowing material.

Primary crusher and secondary crusher roles

A primary crusher normally receives the largest pieces entering a processing circuit. Its purpose is to reduce the feed to a size that can be handled by downstream equipment.

A secondary crusher receives material that has already undergone primary reduction. It generally produces a smaller and more controlled output. In some processing circuits, a tertiary stage is added when a finer product is required.

Types of Crushers and Operating Principles

Crushers differ mainly in how mechanical force is applied to the material. Understanding these operating principles helps explain why different machines are used for different feed and output requirements.

Jaw crusher

A jaw crusher uses a fixed jaw and a movable jaw. Material enters the space between them and is compressed as the movable jaw approaches the fixed jaw.

The crushed material falls downward when the jaw movement creates sufficient clearance. Jaw crushers are commonly associated with primary crushing because their feed openings can accommodate relatively large pieces of material.

Cone crusher

A cone crusher uses a rotating mantle positioned inside a stationary concave. Material is compressed between these surfaces as the mantle moves during operation.

Cone crushers are commonly used in secondary and tertiary crushing applications. Their operating characteristics can support controlled particle-size reduction when the feed material and machine settings are appropriate.

Impact crusher

An impact crusher reduces material by applying impact forces rather than relying mainly on slow compression. Material is accelerated against impact surfaces or other material, causing it to break apart.

Impact crushers are used for various rock and recycled-material applications. The resulting particle shape can differ from that produced by compression-based machines, depending on the feed characteristics and operating conditions.

Hammer crusher

A hammer crusher uses rotating hammers to strike incoming material. The repeated impacts break the material into smaller pieces, which then pass through an outlet or screen arrangement.

Hammer crushers can be used for materials that are suitable for impact-based reduction. Their application depends on factors such as material hardness, moisture, feed size, and the required output.

Roll crusher

A roll crusher uses two rotating rolls, or a roll and a cooperating surface, to compress and reduce material. The spacing between the crushing surfaces influences the resulting particle size.

Roll crushers can be used when a relatively controlled reduction process is required. Their suitability depends on the material and the characteristics of the required product.

Applications

Crushing machines are used in several industries because many raw or recovered materials require size reduction before they can be processed further.

Construction and aggregates

In construction-material processing, crushers can reduce quarried rock, concrete, and other suitable materials into aggregate sizes. The crushed material may then pass through screens that separate it according to particle size.

Mining and mineral processing

Mining operations can use multiple crushing stages to reduce extracted material before additional processing. The required crusher arrangement depends on the characteristics of the ore or mineral-bearing material and the downstream process.

Recycling

Crushing equipment can also form part of recycling systems for concrete, asphalt, and selected construction materials. The objective is to reduce recovered material into manageable sizes for separation, screening, and subsequent use.

Industrial processing

Some industrial processes require controlled particle-size reduction before blending, classification, or another manufacturing stage. The appropriate crushing method depends on the physical properties of the material and the intended result.

Recent Updates

From 2024 through 2026, crushing equipment development has increasingly focused on automation, monitoring, energy management, mobility, and integration with wider material-processing systems. Rather than treating the crusher as an isolated machine, modern installations can connect feeding, crushing, screening, conveying, and monitoring functions into a coordinated process.

Digital monitoring is another continuing development. Sensors can be used to observe factors such as vibration, temperature, machine load, operating hours, and other equipment conditions. This information can help operators identify changes in operating behavior and plan inspection activities.

Remote monitoring and automated controls are also becoming more common in larger processing systems. These technologies can reduce the need for constant manual adjustment, although they do not remove the need for appropriate supervision and safety controls.

Energy and process efficiency

Energy use has become an important consideration in equipment design and plant operation. Variable-speed drives, automated feed control, improved chamber designs, and process monitoring can help match machine operation with changing material conditions.

Mobile and tracked crushing systems are also used in applications where material processing needs to take place closer to the extraction or demolition area. Their use can reduce the need to transport large quantities of unprocessed material between locations.

Another continuing development is greater attention to machine guarding and automated safety functions. Current machinery frameworks increasingly address safety-related control systems and, in some jurisdictions, software-related safety considerations. The European Union's Machinery Regulation, for example, includes provisions concerning safety functions and digital technologies and is scheduled to apply broadly from January 2027.

Laws or Policies

Crushing machines are subject to machinery-safety, workplace-safety, environmental, and electrical requirements that vary by jurisdiction. Because no specific country is identified here, the following information describes common regulatory areas rather than a particular national legal requirement.

Machine guarding is a major safety principle. Moving components, rotating shafts, belts, pulleys, crushing points, and other hazardous areas generally require appropriate protection so that people cannot unintentionally enter danger zones during operation. Occupational safety guidance emphasizes guarding of moving machinery and points of operation.

Energy isolation is another important area. Before maintenance, inspection, or clearing a blockage, applicable procedures generally require the machine and relevant energy sources to be isolated according to workplace rules. Conveyor safety requirements in some regulatory systems specifically address lockout and tagout during maintenance and jam removal.

Machinery placed on regulated markets may also require technical documentation, conformity assessment, safety instructions, and appropriate markings. The European Union's Machinery Regulation 2023/1230 establishes updated machinery requirements and is scheduled to replace the earlier Machinery Directive framework from January 2027.

Environmental requirements can also apply to crushing operations, particularly regarding airborne dust, noise, vibration, water management, and site conditions. The specific requirements depend on the location and nature of the operation.

Tools and Resources

Several practical resources can help users understand crushing equipment and plan operating procedures.

Equipment manuals

The manufacturer's operating and maintenance documentation normally contains information about permitted feed characteristics, machine controls, inspection points, lubrication requirements, adjustment procedures, and safety precautions. These instructions should be treated as equipment-specific rather than universal rules.

Process flow diagrams

A simple process-flow diagram can show how feeders, crushers, screens, conveyors, and stockpiles interact. This can help explain material movement and identify where different crushing stages occur.

Material-sizing calculations

Basic particle-size calculations can help compare feed size with the intended output range. Screening data can also be used to evaluate how much material falls within particular size categories.

Safety checklists

A site-specific checklist may include:

• Guard condition

• Emergency-stop functionality

• Conveyor condition

• Electrical isolation arrangements

• Loose material around walkways

• Unusual vibration or noise

• Dust-control measures

• Access points and barriers

• Inspection and maintenance records

Safety checklists should reflect the actual equipment, workplace procedures, and applicable regulations.

Safety Guidelines

Crushing equipment contains powerful moving components and can create hazards involving entanglement, crushing, falling material, dust, noise, stored energy, and unexpected machine movement. Safety controls therefore need to cover both the machine and the surrounding work area.

Before operation

Operators should understand the equipment controls and the applicable operating procedure before starting the machine. Guards, access barriers, emergency controls, and other protective devices should be checked according to the relevant procedure.

Material should also be assessed for suitability. Objects that the crusher is not designed to process can cause blockages, damage, or unexpected movement.

During operation

People should remain outside designated danger zones while crushing equipment is operating. Material should not be manually pushed into a running crusher unless a procedure specifically designed for that task permits it.

Unusual vibration, noise, material buildup, overheating, or changes in machine behavior can indicate an operating problem. The appropriate response should follow the equipment procedure rather than attempting an improvised intervention.

During blockage removal and maintenance

A blockage should not be cleared by reaching into a crusher or conveyor while hazardous energy remains present. Applicable isolation and verification procedures should be completed before entering a danger zone.

Guards should be returned to their required positions before normal operation resumes. OSHA guidance similarly emphasizes machine guarding and energy-control practices for hazardous machinery.

FAQs

What is a crushing machine?

A crushing machine is equipment that applies mechanical force to reduce large pieces of rock, minerals, concrete, or other suitable materials into smaller particles. Different crusher types use compression, impact, or related mechanical forces.

What are the main types of crushers?

Common types include jaw crushers, cone crushers, impact crushers, hammer crushers, and roll crushers. Their operating principles and suitable applications differ according to material characteristics and required particle size.

What is the difference between a primary crusher and a secondary crusher?

A primary crusher normally handles the larger feed entering a processing circuit. A secondary crusher receives material after primary reduction and produces a smaller output for further processing or screening.

What safety precautions are important for crushing machines?

Important areas include machine guarding, controlled access, emergency controls, appropriate operating procedures, energy isolation during maintenance, suitable personal protective equipment, and keeping people away from moving components and material discharge areas.

What factors affect crusher selection?

Material hardness, abrasiveness, moisture, feed size, required output size, throughput requirements, and the number of crushing stages can all influence crusher selection. The surrounding screening and conveying arrangement can also affect the overall process.
