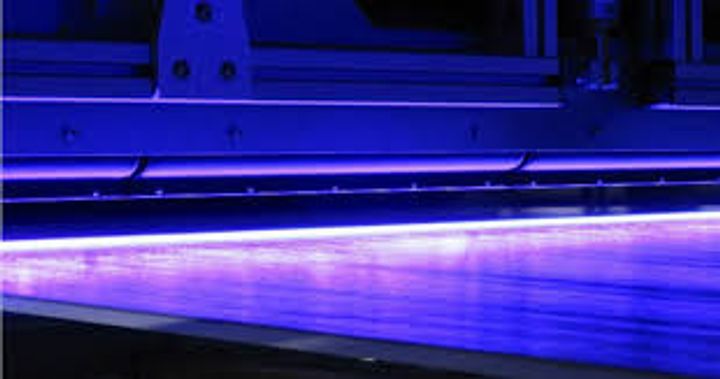

A UV curing machine is a device that uses ultraviolet light to initiate a photochemical reaction that instantly cures or hardens certain materials. These materials must contain photoinitiators that respond to UV radiation, enabling fast polymerization and solidification without the need for heat-based drying.
Key Features of UV Curing Machines
1. UV Light Source
The core component of any UV curing machine is its light source. There are two primary types:
Mercury Vapor Lamps: Emit a broad spectrum of UV light and are suitable for curing thicker or more complex materials.
UV LED Lamps: Offer energy efficiency, long lifespan, and targeted wavelengths, ideal for sensitive applications.
2. Wavelength Selection
UV curing systems operate at specific wavelengths, typically between 200 nm and 400 nm. The selection depends on the material being cured. Shorter wavelengths penetrate deeper, while longer ones are better for surface curing.
3. Conveyor or Stationary Platforms
Some systems are equipped with conveyor belts to handle continuous processing, while others use stationary platforms for spot or batch curing. The choice depends on the production scale and material handling needs.
4. Cooling Mechanism
UV lamps generate heat. Therefore, machines often include air or water cooling systems to manage temperature and prevent damage to heat-sensitive substrates.
5. Digital Control Interface
Modern UV curing machines feature programmable interfaces for adjusting lamp intensity, conveyor speed, exposure duration, and more. This ensures precise control and consistent results.
Functions of a UV Curing Machine
1. Surface and Deep Curing
UV curing machines are capable of both surface hardening and deep curing, depending on the material composition and the type of UV light used.
2. Fast Polymerization
By accelerating the curing process, these machines help increase throughput and reduce drying times from hours to seconds.
3. High Adhesion and Durability
UV-curable materials typically result in strong bonds, excellent abrasion resistance, and improved chemical stability.
4. Instant Handling
Once cured, materials can be immediately handled, packaged, or processed further, streamlining production workflows.
Advantages of Using UV Curing Technology
Speed: The rapid curing process boosts productivity.
Energy Efficiency: Especially with LED-based systems, energy consumption is significantly lower.
Eco-Friendly: UV curing reduces or eliminates the need for solvents, contributing to cleaner air and safer working conditions.
Consistent Results: Tight control over the curing environment ensures uniform quality across batches.
Compact Design: Many systems are space-efficient, making them suitable for various production setups.
Common Applications of UV Curing Machines
Printing and Packaging
UV curing is widely used in flexographic, offset, screen, and digital printing to cure inks on paper, plastic, metal, and glass. It enables instant drying, which is essential for high-speed packaging lines.
Electronics
UV adhesives and coatings are used to bond and protect delicate electronic components. UV curing ensures fast, localized bonding with minimal thermal stress.
Automotive
Applications include curing coatings on plastic trims, lenses, and interior panels, as well as bonding parts with structural UV adhesives.
Medical Devices
UV curing is utilized in the assembly of catheters, syringes, and diagnostic devices where cleanliness, accuracy, and fast production are critical.
Woodworking and Furniture
Clear coats, sealants, and finishes are cured on wood surfaces to provide durability, chemical resistance, and enhanced appearance.
Best Practices for Operating UV Curing Machines
Ensure Material Compatibility
Use materials specifically formulated for UV curing and match them with the appropriate UV wavelength.
Monitor Lamp Output
Regularly check lamp intensity and replace UV lamps or LED modules as needed to maintain performance.
Protect Operators
Use shielding and protective gear to prevent UV exposure to skin and eyes.
Maintain Equipment
Clean reflectors, lenses, and conveyor systems routinely. Ensure proper ventilation and cooling to prolong machine life.
Calibrate Settings
Adjust exposure time, lamp intensity, and conveyor speed according to the thickness and type of material being cured.
Conclusion
UV curing machines are powerful tools that offer unmatched efficiency and reliability in curing processes across diverse industries. With their advanced features, customizable functions, and broad application range, they contribute significantly to higher productivity, better product quality, and environmental sustainability.
Understanding the features and correct usage of UV curing machines can help manufacturers select the right system, optimize their production lines, and stay competitive in a fast-evolving marketplace.
If you’re involved in any field where rapid, high-quality curing is essential, mastering UV curing technology can be a valuable asset in your operations.
